Código: MI00046
Fabricante: Mid Continent
Mercados:

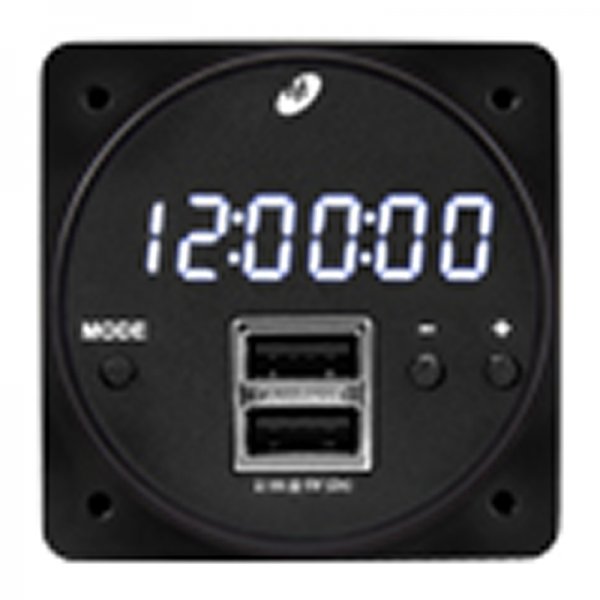

Model Number: MD93
Digital Clock/USB Charger
2", 10?32 VDC, Digital, Dual USB
Features
*Compact 2-inch size fits standard panel cutout
*Six-digit, seven-segment LED clock and USB charger
*Four modes: local time, universal time, flight timer and stopwatch
*Clock settings include 12? or 24?hour mode and seconds On or Off
*Multiple lighting schemes allows manual or automatic dimming
*8-year internal battery maintains time and flight timer memory when not powered by the aircraft
*USB interface provides 2.1 amps per charging port
*Compatible with Apple and other USB devices
*Protects itself and the charging device from short circuit, power surges and over-current potential
*FAA TSO certified to C73
*EASA ETSO certified to C73
*RTCA DO-160G qualified
*Designed and built in Wichita, Kansas, USA
*One-year limited warranty
Specifications
Power Input
10?32 VDC, 27 watts max
2.1A @ 14 VDC; 1A @ 28 VDC (clock only)
Power Output
5.0 ± 0.25 VDC; 2.1A per USB Port
Clock Accuracy
±0.5 seconds in 24 hours
Weight
0.3 lbs
Temperature
-40ºC to 70ºC (-40ºF to 158ºF)
Altitude
55,000 feet
Mounting
Rear-panel mounted, (4) #6 screws
Dimensions
2.39 x 2.39 x 1.15 inches max
Connector Kit
MCIA P/N 9018178
USB Interface
USB Standard-A
Case
Anodized aluminum black
Certification
FAA TSO certified to C73
EASA ETSO certified to C73
RTCA DO-160G qualified
