AHRS380ZA-200

Código: ME00051

Fabricante: Memsic

Memsic

Mercados:


The MEMSIC AHRS380ZA is a miniature fully calibrated attitude & heading reference system designed for demanding embedded applications that require a complete dynamic measurement solution in a robust low-profile package. The AHRS380ZA provides a standard SPI bus for cost effective board-to-board communications.

Specifications

Product Type:Embedded
Footprint: 3.8 x 2.4
Interface: SPI / UART
Connector Style: Header
Heading Accuracy: 1
Roll/Pitch Accuracy: 0.2
Gyro Range: 200
In-Run Stability: 10
Non-Linearity : 0.1
Bandwidth: 5 - 50
Accel Range: 4
In-Run Stability: 0.02
Non-Linearity : 0.1
Bandwidth: 5 - 50
Mag Field Range: 4
Mag Field Accuracy: 1
Gyro Bias Stability Over Temp < 0.5°/sec
Gyro Angle Random Walk < 0.75°/Root-Hr
Accel Bias Stability Over Temp < 5mg

Features and Benefits
*Complete 9 DOF Inertial System
*Roll/Pitch/Heading Outputs
*SPI (or UART) Interface
*Update Rate, 1Hz to 200Hz
*1KHz Clock Synch
*Miniature Package, 24 x 37 x 9.5 mm
*Lightweight < 17 g
*Low Power Consumption < 250 mW
*Wide Temp Range, -40C to +85C
*High Reliability, MTBF > 50k hours

Applications
Precision Farming
Platform Stabilization
Unmanned Vehicle Control
Robotics Control


Productos relacionados

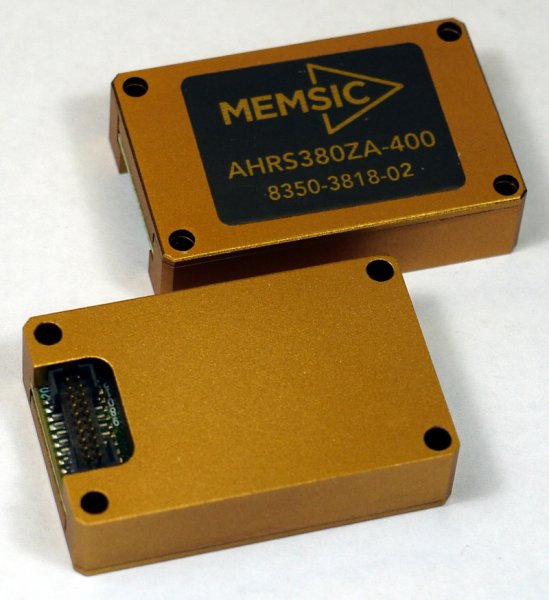

AHRS380ZA-400

ME00052

AHRS380ZA-400

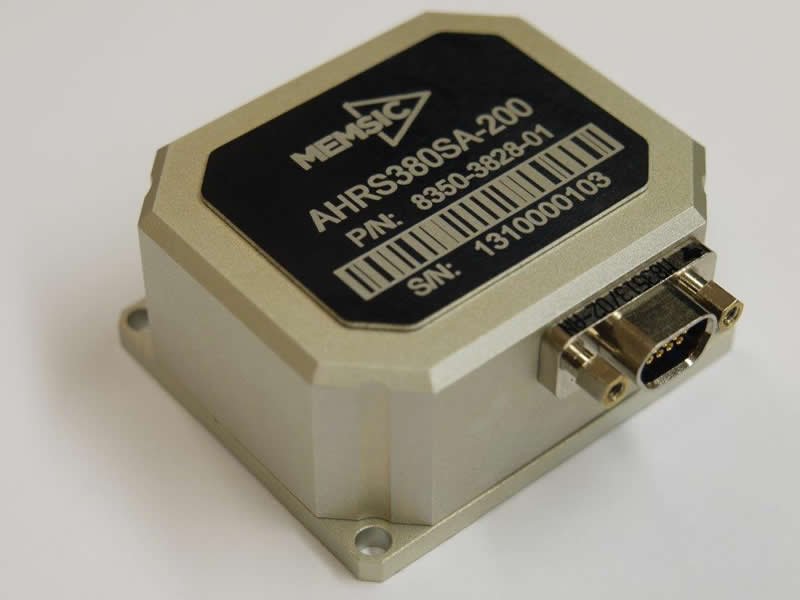

AHRS380SA-200
