Aspen?s Evolution Pro H PFD (Primary Flight Display) EFIS display technology is a perfect fit for helicopter panels, with robust AHRS features and the latest in solid-state technology.

Special vibration isolation design meets the rigors of demanding helicopter operations. Unparalleled reliability and accuracy make every mission safer. Breakthrough pricing makes EFIS display technology available for a fraction of the cost of traditional EFIS systems.

The Pro H PFD delivers enhanced safety, reduced pilot workload and the flexibility to expand as your needs grow. The Pro H PFD is part of the Evolution Flight Display series, which can provide full PFD redundancy and many additional capabilities.

The inovative Evolution form factor installs easily in existing helicopter instrument panels and eliminates bulky remote boxes and heavy wiring.



Features:
*Special vibration mount meets DO-160F helicopter vibration standards.
*Airspeed and altitude tapes, with altitude alerter (and separate approach minimums alerting)
*Built-in GPS Steering
*Full electronic HSI with dual bearing pointers
*Base map with flight plan legs and waypoints, curved flight paths, and nearby navaids
*Integral Air Data Computer and Attitude Heading Reference System (ADAHRS)
*Built-in backup battery
*Optional EHA upgrade provides traffic and weather displays
*Lowest price full- featured glass panels for GA retrofit
*Advanced EFIS six-pack replacement
*The only upgradable PFD-only EFIS on the GA market
*Works with your panel?s existing avionics ? nearly every GPS or nav radio
*Broadest autopilot/ flight director support


Specifications

General Specifications:
Overall Dimensions 3.50? W x 7.00?H x 4.15?D
Weight 2.9 lbs. with mounting bracket
Display Type 6.0? Diagonal TFT Active Matrix LCD
Display Resolution 400x760
Display Backlight High Intensity White LED
Display Colors 32,768

Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +8 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc

I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect

Certification Specifications:
FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level B

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet

Engineered for Easy Installation

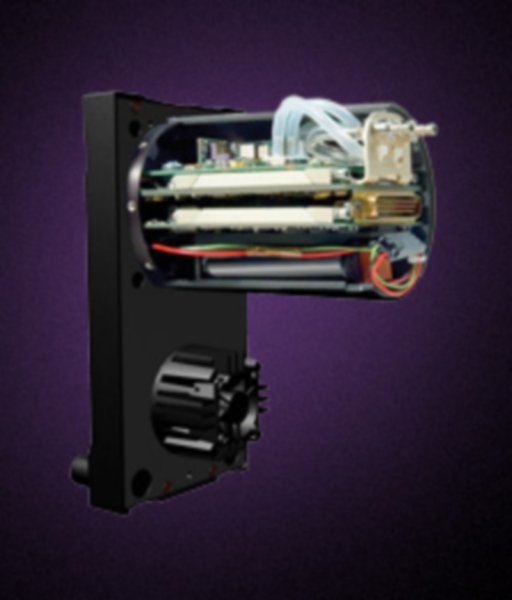

The Evolution flight displays are innovative, modular system components that slide into existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique design dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.
