The Evolution 500H MFD (Multi-Function Display) provides the same wide array of MFD features as the 1000H MFD at a lower price by eliminating the duplicate sensor set and the ability to serve as a PFD backup. It?s a perfect MFD solution for the pilot who wants a more affordable glass panel expansion when adding on to the PFD. It?s also ideal as a third display to round out your glass cockpit six-pack replacement.

Features:
*Special vibration mount meets DO-160F helicopter vibration standards.
*Reliable, solid-state design optimized for helicopter installation
*Sectional-style moving maps with hazard awareness overlays
*Customizable screen layouts
*Charts and geo-referenced airport diagrams
*Built-in backup battery
*Built-in terrain awareness
*Traffic overlay on map via interface

Weather
*WX500 Stormscope interface
*Datalink weather

Specifications

General Specifications:
Overall Dimensions 3.50? W x 7.00?H x 4.15?D
Weight 2.9 lbs. with mounting bracket
Display Type 6.0? Diagonal TFT Active Matrix LCD
Display Resolution 400x760
Display Backlight High Intensity White LED
Display Colors 32,768

Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +8 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc

I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect

Certification Specifications:
FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet

Engineered for Easy Installation

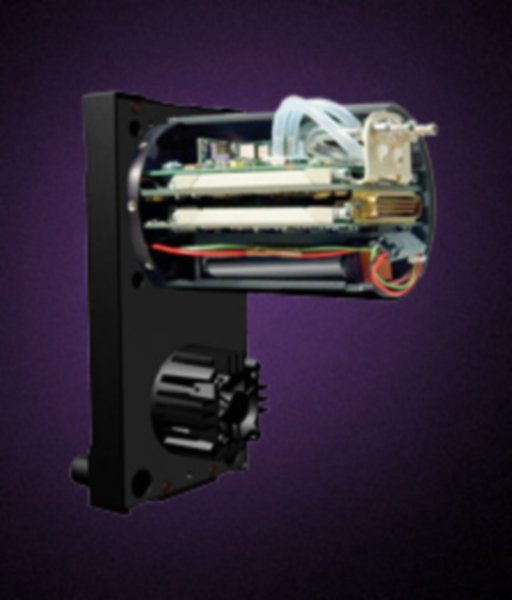

The Evolution flight displays are innovative, modular system components that slide into existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique design dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.
