Part of the Rockwell Collins Flight Mission Computer (FMC) families, the FMC-4000 combines high scalability and rugged design with small size and low power. This makes it an optimal system for unmanned aerial vehicles, helicopters as well as fighter mission computers trimmed for the highest performance and robustness.

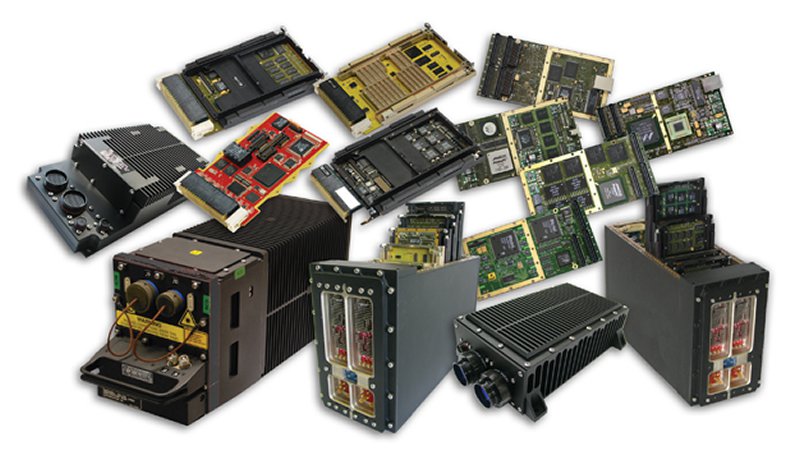

The FMC-4000 is based on a set of highly integrated common modules that are typically housed in small form factor or standardized enclosures. The common FMC-4000 modules use a 3U form factor and are based on latest VPX technology. Internal communication paths use high-speed serial links, which have replaced parallel busses. PCI Express, switched Gigabit Ethernet and RapidIO link provide an internal communications bandwidth of up to 10 GBit/s between two participants.

All interfaces typically used in avionics architectures (e.g., SDI, HD-SDI, DVI and Gigabit Ethernet) can equip the FMC-4000. It provides a path for future technology upgrades and allows for the integration of third-party hardware and software.

Key Features & Benefits
*Rugged design: Suitable for harsh environments.
*Military and dual-use airborne solutions: Applications range from civil to military fighter.
*Various enclosure options: These include ARINC-600 and ATR housings.
*High-end, multi-core processing capabilities
*Extensive signal, image and video processing with hardware acceleration
*Bulk storage capability: Enables recording and mass data storage.
*Supports typically used avionic interfaces
*Internal graphics generation option
*115VAC or 28VDC input voltage
*Offers provisions for future system expansion

Physical Specs
Width: 123.65mm max
Height: 193.1mm max
Length/Depth: 306.85mm (exclusive handle)
Weight: 6.244 kg
Size: 1/2 ATR short
Color: black
Other: ARINC 4MCU short

Power: 28VDC or 115VAC

Environmental:
Operating Temperature: -40 to +70?C
Storage Temperature: -55 to +85?C
