406 MHz Emergency Locator Transmitter

Model Number: 453-6604

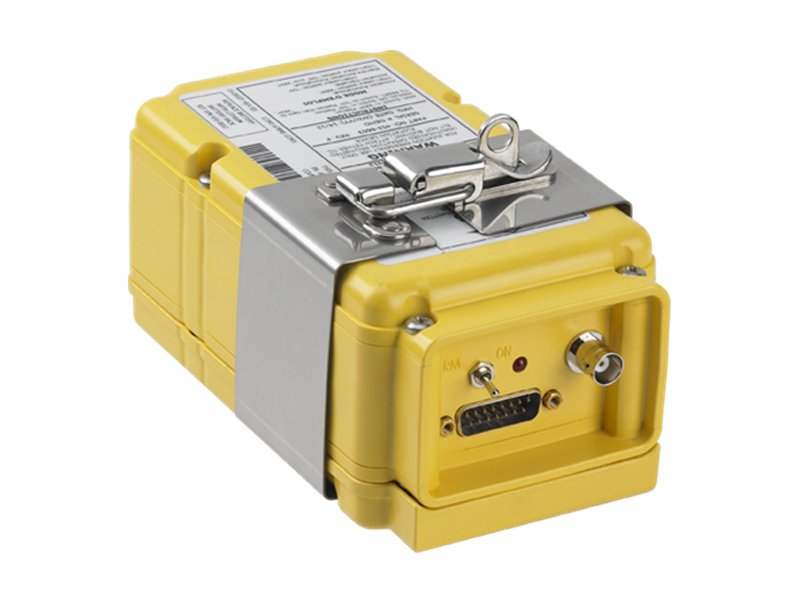

The Artex ME406 Helicopter Model (HM), a single output ELT, utilizes the same RF output and only one coax cable to transmit 121.5 and 406 MHz emergency signals to the Cospas/Sarsat satellites. The ELT automatically activates during a crash and transmits a continuous swept tone on 121.5 MHz. During activation, the 406 MHz transmitter sends an encoded 5 watt signal every 50 seconds for 440 milliseconds to alert Search and Rescue.

Simple Installation

The mounting hardware for the ME406 Series is compatible with all previous models of Artex 406 MHz ELT products, as well as the ELT-200 Series, ACK, Pointer Model 3000 and Narco ELTs. Current owners of Artex 2-frequency TSO C91a ELTs can re-use the remote switch in the cockpit, as well as the wiring harness from the cockpit to the ELT. This greatly reduces installation costs.

* Automatic Fixed Emergency Locator Transmitter
* Multiple Axis G-Switch for helicopters
* Fixed wing and helicopter applications
* Single antenna output for both 121.5 and 406 MHz frequencies
* Worldwide coverage
* 6-year battery life (Replacement Battery Part No. 455-0012)
* If you use it...we'll replace it, Free of Charge. Simply submit your story, send us back your used beacon so we can have it mounted on our Wall of Fame and we'll send you a brand new beacon of equal or greater value.

ARTEX ELTs are the choice of rotorcraft aircraft including Sikorsky, Airbus Helicopters, AgustaWestland and Bell.

Certifications
TSO C126
ETSO 2C126
Cospas/Sarsat Approved
Transport & Industry Canada Approved

SPECIFICATIONS
Model ME406 HM
Antenna Options Available Rod: 110-338
Operating Frequencies 406 MHz, 121.5 MHz +/- 5 KHz
Ouput Power 406 MHz: 5 W (440 ms/ 50 sec) for 24 hours @ -20?C to +55?C, 121.5 MHz: 100 mW minimum for 50 hours @ -20?C to +55?C
Output Connector BNC Female
Activation Automatic by 4.5 feet per second (2.3G) Primary G-Switch, or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation
Battery 6 year Lithium (LiMnO2, solid cathode) (Replacement Battery Part No. 455-0012)
Temperature Certified to: Operating: -20?C to +55?C, Storage: -55?C to +85?C
Self Test G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Low
Battery Remote Control ON/ARM
Weights (with tray) 2.05 lbs (933 g) Measurements ELT Transmitter with mounting hardware installed: 6.59? (167 mm)L x 2.86? (73 mm)H x 3.69? (94 mm)W
