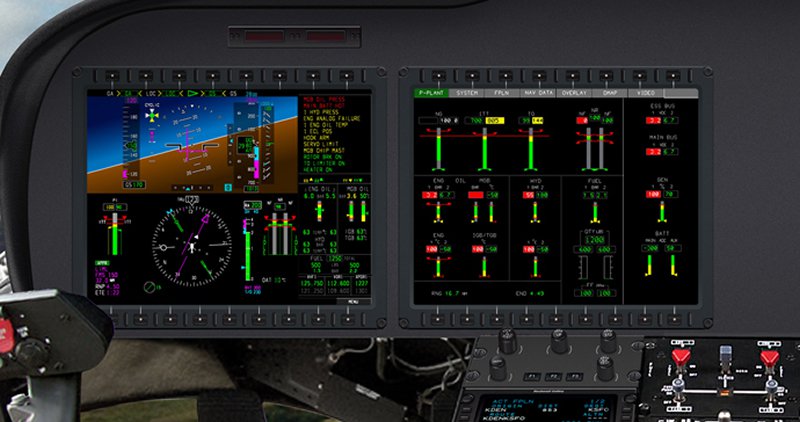

See more and do more with the Rockwell Collins high-performance MFD-2810. This integrated Multifunction Display delivers video and graphics on an XGA resolution (1024 x 768 pixel), high performance Active Matrix Liquid Crystal Display (AMLCD). The unit can simultaneously display up to four video windows on the full 8? x 10.6? active area of the AMLCD.

Offering the latest generation Rockwell Collins graphics engine, MFD-2810 allows you customization through the ARINC 661 open standard. It includes Avionics Full-DupleX Ethernet (AFDX) to provide significant network flexibility and reduces aircraft wiring and weight. You can also add a 3D graphics processor for applications such as synthetic vision. A sealed chassis with an integral cooling fan and a 17 push-button bezel complete the robust mechanical design. Based on our Flight2? open architecture, the MFD-2810 employs 3U compact Peripheral Component Interconnect (PCI) cards, which are common to other Flight2 products.

Key Features & Benefits
*Rugged, military, civilian, multi-application (dual use)
*Multiple merge layers: videos, 2D & 3D graphics, WXR, dual cursor
*OpenGL 3D graphics
*Power PC processing with multiple OS accommodations
*Synthetic VISion (SVIS) hardware enabled
*I/O complement including: EIA/TIA-422, G/O discretes, ARINC 708 weather radar and analog and digital video
*ARINC 661 standard compliant
- Gamma correction
- Variety of video accommodations across product line:
*RS-170 mono/RGB, true white monochrome
*RS-343 mono/RGB
*HDTV digital video (SMPTE 292M -720p and 1080i)
*NTSC/PAL composite


Physical Specs
Width: 11.82 inches
Height: 10.15 inches
Length/Depth: 9.25 inches
Weight: 22 pounds

Power
Input Voltage:
28 VDC

Environmental
*Operating Temperature: -40 to + 70 deg C
*Storage Temperature: -55 to +85 deg C
*Altitude: 25,000 ft
*Humidity: 95% RH for 10 days
*Reliability:3,000 hrs at 35 deg C
*ENV Cer: DO-160F
