Código: RO00119
Fabricante: Collins Aerospace
Mercados:

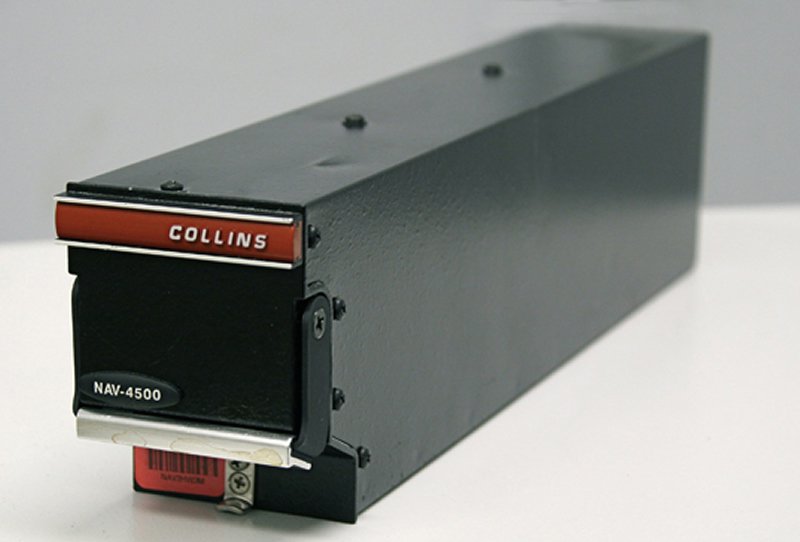

The Rockwell Collins NAV-4000/4500 integrated navigation receivers are members of our Pro Line 21 CNS product family. The NAV-4000 incorporates the VOR/localizer, glideslope, marker beacon and ADF receivers into a single package. Our NAV-4500 is intended for installations offering a single ADF receiver as standard with a dual ADF receiver as an option. It is identical in size and pinout to the NAV-4000 but excludes the ADF receiver. For new installations, high-speed interfaces with a radio interface unit enable features such as software data loading, enhanced maintenance reporting, digital audio and data communications management. The NAV-4000/4500 also maintain the Pro Line II and Pro Line 4 serial data and analog audio interfaces, allowing them to fit into existing installations with minimal aircraft modification. Key Features & Benefits *NAV-4000 combines ADF with VOR, ILS and marker beacon receivers in a single package *NAV-4500 is identical to the NAV-4000, except it does not include the ADF receiver *Simplified installation: Installs with a single set of high-speed ARINC 429 I/O buses as part of our Pro Line 21 CNS suite. *ARINC 429 and CSDB tuning and data interfaces: These support a variety of installation options. *Highly efficient: Offers the lowest size, weight and power available for business and regional aircraft avionics. *Meets DO-160D Change 1 environmental requirements: Installs in helicopter and composite aircraft. *Offers improved maintenance: Get comprehensive maintenance software accessed through the aircraft?s maintenance computer or shop repair facility.
