Código: RO00067
Fabricante: Collins Aerospace
Mercados:

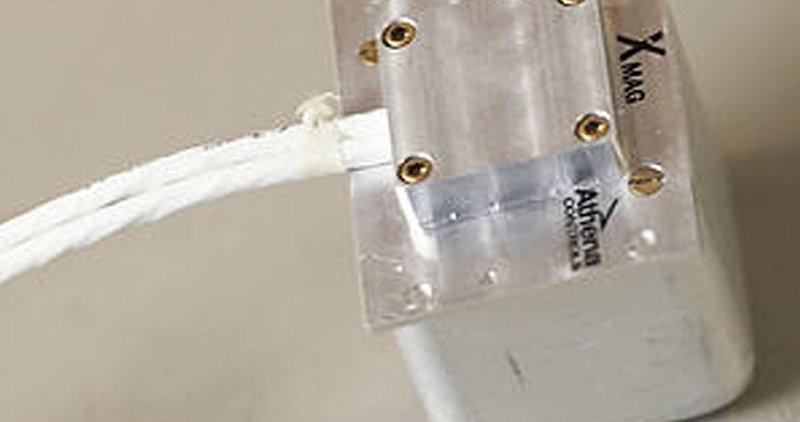

The XMAG is used to measure the magnetic field in the area of its installation. This in-production device is a solid-state sensor designed to fit within the normal location of a flux-gate sensor on an aircraft. It provides automatic ground and airborne calibration when used with an Athena unit. The XMAG receives power from the aircraft bus and contains RS?232, RS-422 and 0-5 VDC analog outputs. It also has three 0-5 VDC analog outputs, one for each axis and one common analog ground for these signals. The XMAG-100 has an analog report rate capability of 300 Hz or better and a digital report rate capability of up to 250 Hz at 115.2 k/bps.
Key Features & Benefits
*Automatic ground and airborne calibration when used with an Athena or Micro INS?
*Supports two electrical outputs--analog or digital serial outputs--perfect for replacing legacy magnetometers
*Developed to DO-178B and qualified to DO-160E
Specifications
Physical Specs
Dimensions: 66cm3 (4in3), not including cable and I/O connector
Weight: 156 grams (5.5oz)
Power
The XMAG operates within the nominal voltage range of 9-36 VDC and is qualified to RTCA/DO160E paragraph Category B requirements.
The XMAG consumes no more than 1 W of power under normal operating conditions.
Environmental
Calibrated temperature range: -55?C to 70?C
