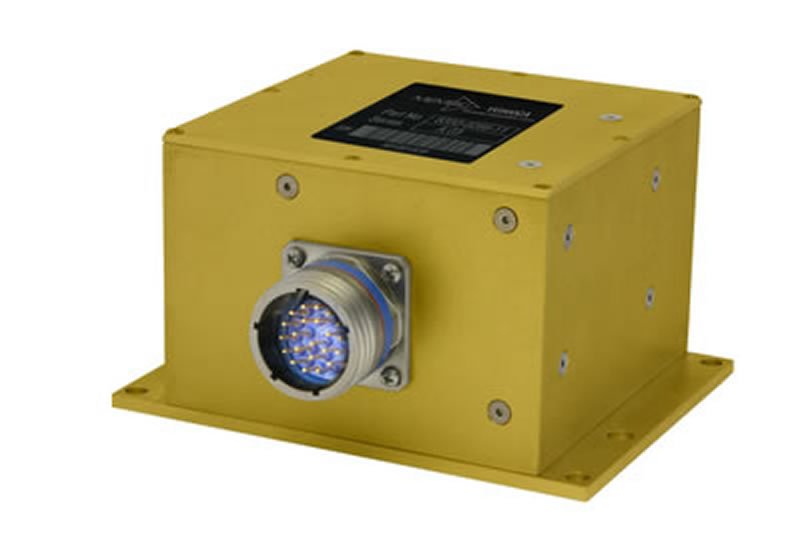

VG800CA-210

Código: ME00050

Fabricante: Memsic

Memsic

Mercados:


The VG800CA establishes a new level of performance for standalone ?unaided? inertial systems. The VG800CA combines advanced MEMS rate gyro and accelerometer technologies to provide a superior solution for measurement of dynamic roll and pitch angles in demanding environments. The VG800CA can be configured as a high performance IMU for integrated navigation systems, or as a vertical gyro for stabilization and control applications. Output data is available in both analog and digital formats, and a VG700-compatible mode is available for customers converting from the FOG-based VG700 to the MEMS-based VG800.

Specifications
Roll/Pitch Accuracy: 0.5
Gyro Range: 200
In-Run Stability: 3
Non-Linearity : 0.1
Bandwidth: 50
Accel Range: 10
In-Run Stability: 1
Non-Linearity : 0.1
Bandwidth: 50

Features and Benefits
*Advanced MEMS Sensors
*Low Drift < 3°/hr
*High Reliability, MTBF > 20,000 hrs
*Stabilized Roll/Pitch Angle Outputs
*Fully Compensated Angular Rate and Linear Acceleration Outputs
*Digital (RS-232/RS-422) & Analog Outputs
*VG700-Compatible Interface Option

Applications
Unmanned Vehicle Control (ROV/UUV)
Antenna/Camera Stabilization
Flight Data Acquisition
