Código: TS00021
Fabricante: Tesla
Mercados: Tierra Seguridad

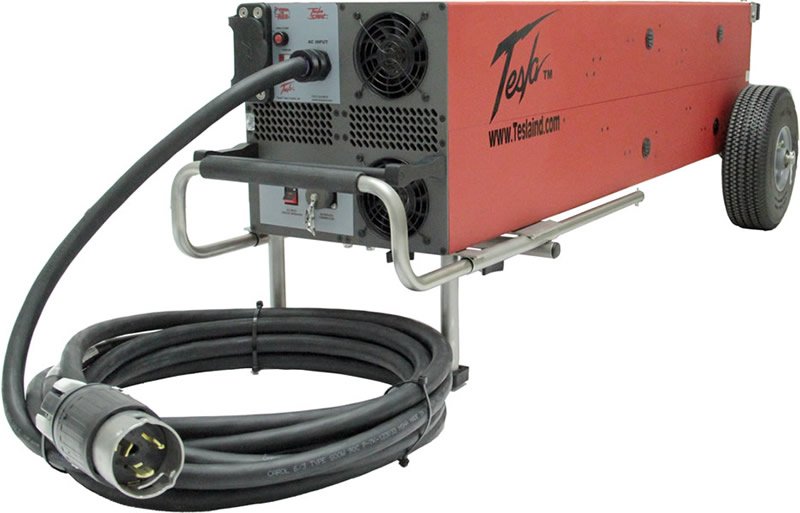

The TI5200 provides 200 amps continuous along with 3000 peak starting amps. With 46 amps of rechargeable power available, this system will take care of your power requirements in a hangar or maintenance facility as well as in the field *Ideal for small to medium size, fixed wing aircraft. *Perfect for testing and troubleshooting (avionics, TMDE, electronics, and hydraulics). *System back-charges from the started vehicles? engine in minutes. *99.95% efficient active power factor correction. 1% THD (Total Harmonic Distortion). *Will charge and condition vehicle batteries when unit is left connected to vehicle (AC power required). *One person can maneuver and operate the unit. Safe for flight, non-hazardous, dry-cell technology. TI5200 GPU-24-PFC Specifications DC Output: 3000 peak starting amps 200 amps continuous @ 28.5 Vdc (when plugged into ac power) 246 amp hours (6724 watt hours) with ac power 46 amp hours (1024 watt hours) of rechargeable battery power without ac AC Input: Operates and charges from single phase 200-260 Vac / 40 Hz - 450 Hz 33.5 amps @ 208 Vac 60 Hz 50 amp Twist-Lock Plug (50 amp service required) Recharging Rate: 19 minutes (from full discharge) @ 25?C Dimensions: 49.0" L x 19.25" W x 16" H 1244.60 mm x 488.95 mm x 406.40 mm Weight: 177 lbs (80.28 kg) Warranty: 2 Years (3 Year Optional)
